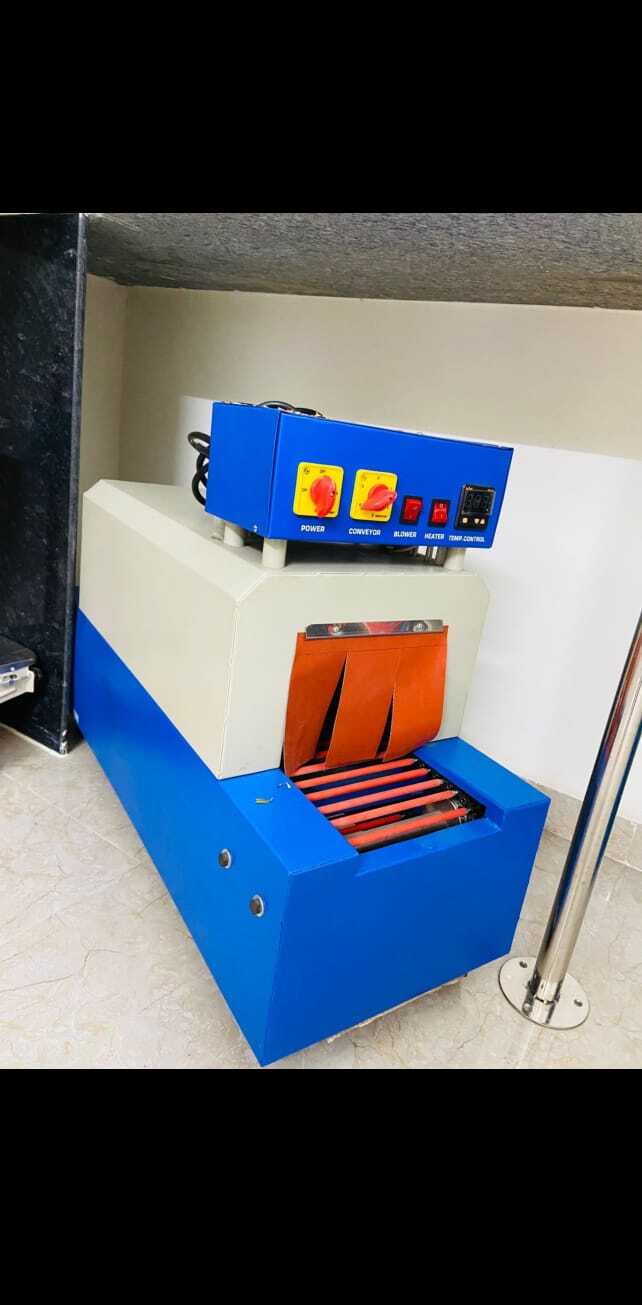

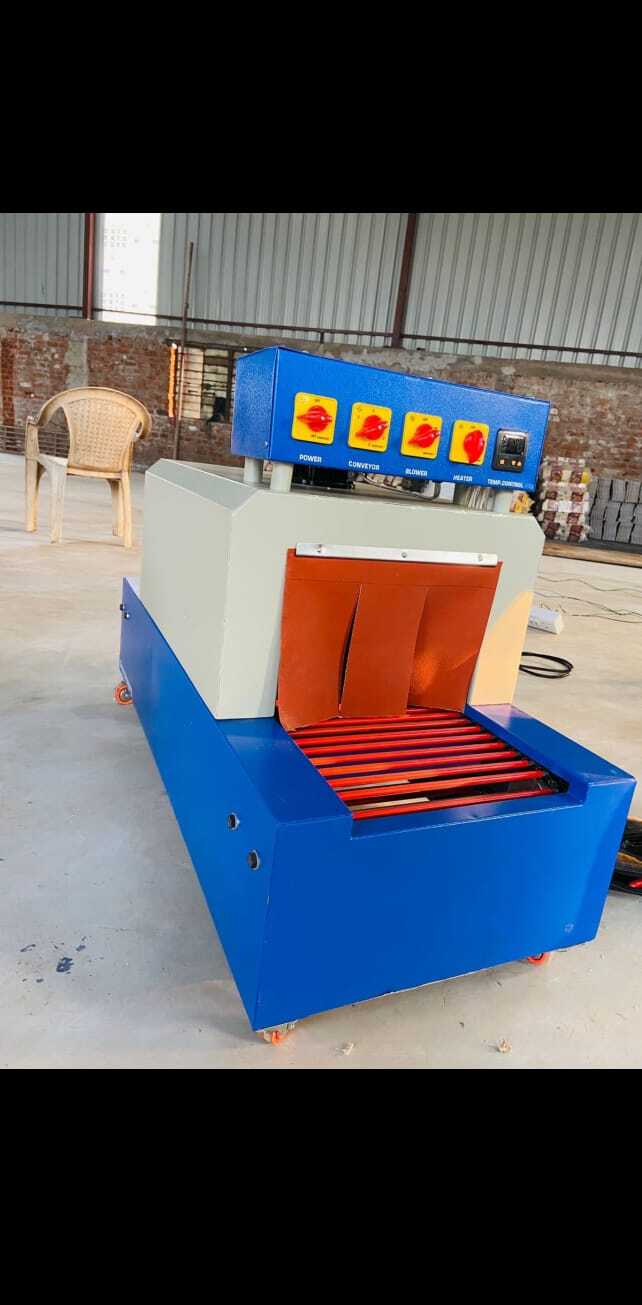

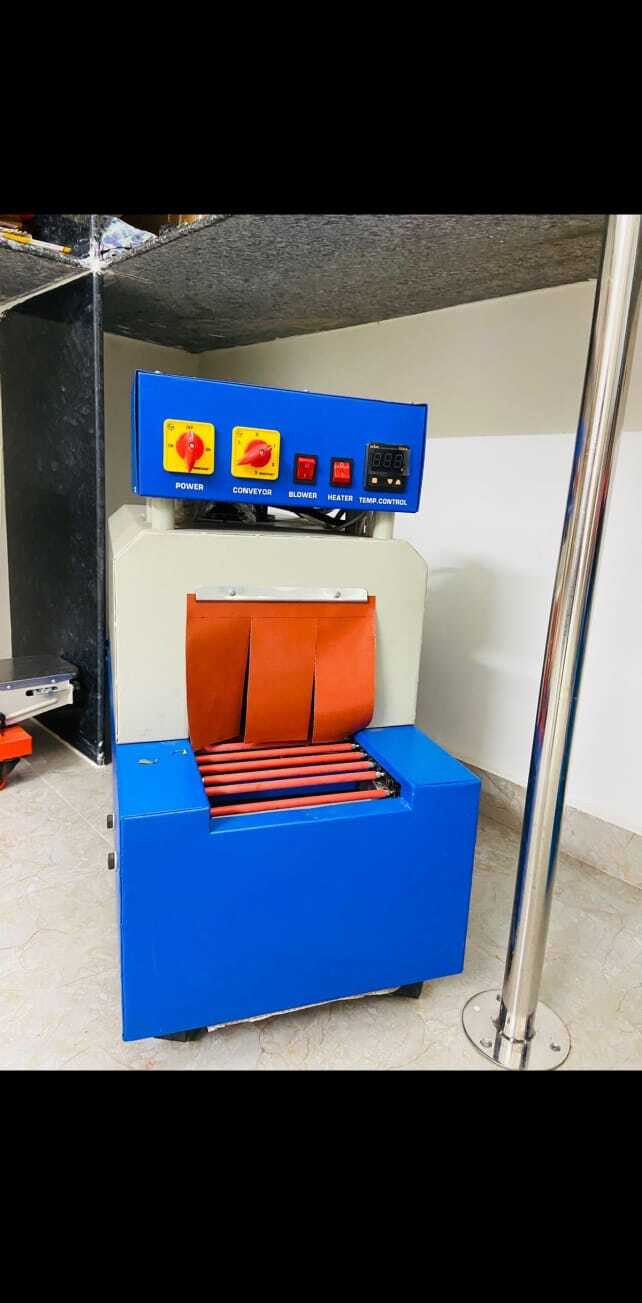

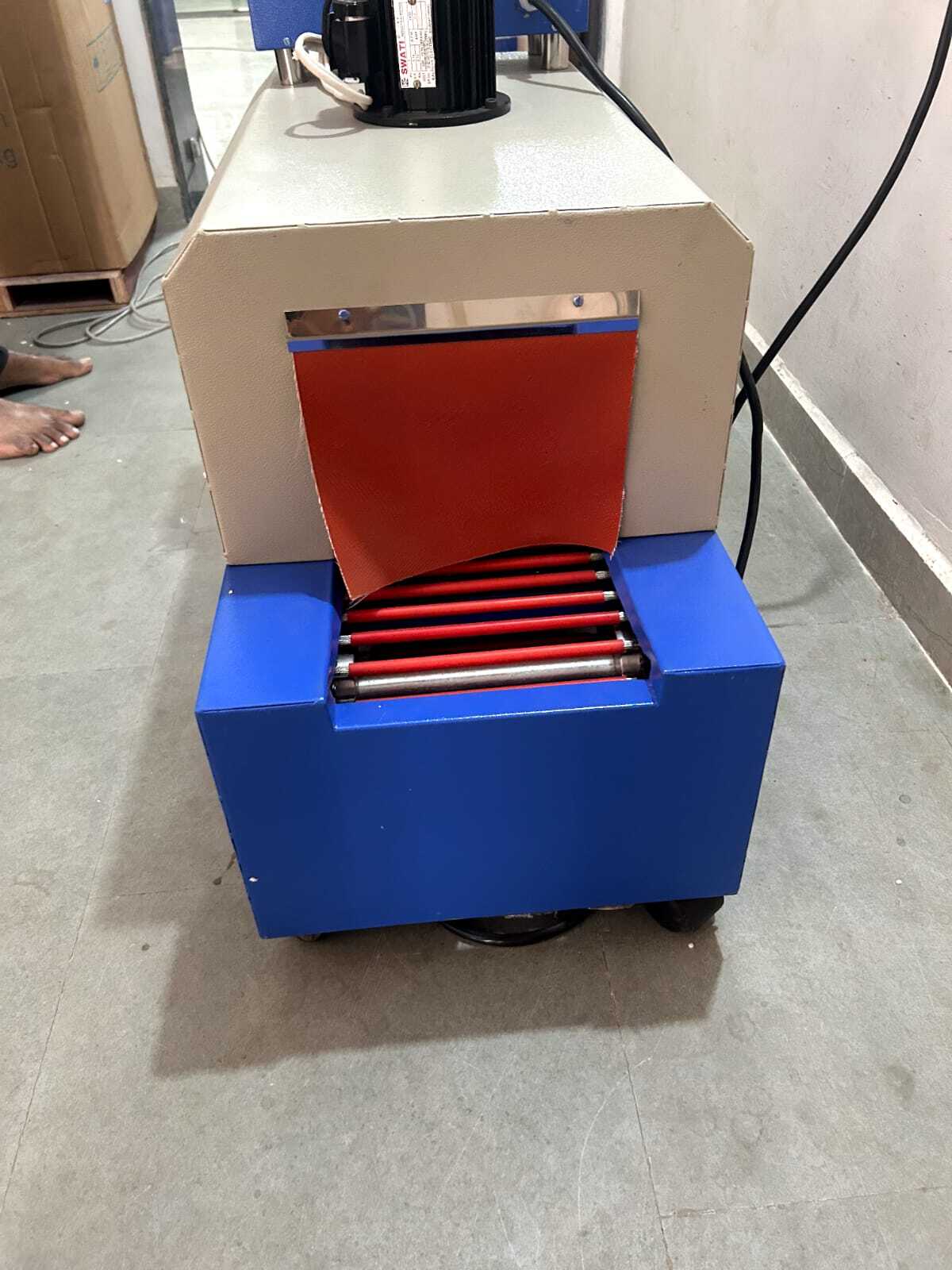

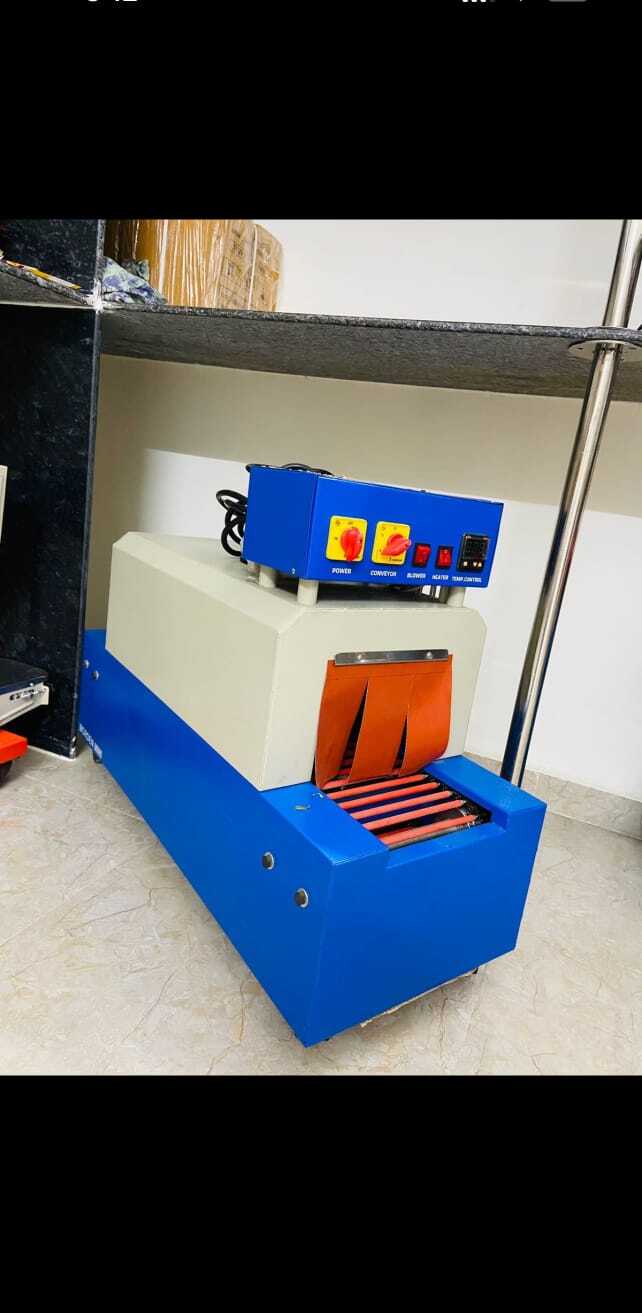

SHRINK TUNNEL MACHINE

About SHRINK TUNNEL MACHINE

A shrink tunnel machine is used in packaging processes to apply heat to shrink film around products, ensuring a tight fit and secure packaging. Heres a technical description of its components and functionalities:

Components

1. Conveyor System

   - A belt or roller conveyor that transports products through the tunnel.

   - Designed for smooth movement, often adjustable in speed to accommodate different packaging speeds.

2. Shrink Tunnel Chamber

   - The main body where the shrinking process occurs.

   - Typically insulated to maintain temperature efficiency and safety.

3. Heating Elements

   - Installed inside the tunnel, these can be electric or gas-fired.

   - Provide controlled heat to shrink the film uniformly around the product.

4. Temperature Control System

   - Allows operators to set and monitor the temperature within the tunnel.

   - May include digital displays and sensors for precise control.

5. Airflow System

   - Fans or blowers that circulate hot air within the tunnel.

   - Ensures even heating of the shrink film for consistent results.

6. Infeed and Outfeed Guides

   - Help direct products into and out of the tunnel, ensuring proper alignment.

   - Can be adjustable to accommodate various product sizes.

7. Control Panel

   - A user interface for setting parameters such as temperature, conveyor speed, and time.

   - May include safety features like emergency stop buttons.

Functionality

- Heat Application

   - As products pass through the tunnel, heat is applied to the shrink film.

   - The film contracts, conforming tightly to the shape of the product.

- Adjustable Speed and Temperature

   - Operators can modify settings based on product type and film specifications.

   - Ensures optimal shrinkage without damaging the product.

- Versatile Use

   - Suitable for various products, including bottles, boxes, and multipacks.

   - Can accommodate different sizes and shapes.

Applications

- Food Packaging

   - Used for sealing and protecting food items, ensuring freshness and hygiene.

- Beverage Industry

   - Commonly used for shrink-wrapping bottles and cans.

- Consumer Goods

   - Ideal for packaging multiple items together for retail sales.

- Industrial Products

   - Protects tools, parts, and components during storage and shipping.

Advantages

- Efficiency

   - Automates the packaging process, increasing production speed.

- Cost-Effective

   - Reduces material waste by using precise shrink film application.

- Secure Packaging

   - Provides tamper evidence and enhances product protection during transport.

- Customizable

   - Can be adapted to different products and packaging materials.

This shrink tunnel machine plays a critical role in modern packaging operations, ensuring products are securely wrapped and presented attractively for consumers.
